1961 Zenith Royal 400, chassis 7GT40Z2

Coat pocket radio, thermoplastic cabinet, vernier tuning
5 15/16 x 3 1/2 x 1 5/8 inches / 151 x 89 x 41 mm
Seven transistors, four 1.5v AA cells
Manufactured by Zenith Radio Corp.; Chicago, Illinois

A handsome Zenith radio, released the same year as the Royal 500H -- the Royal 400 had vernier tuning and the same oval speaker as the 500H, and much of the same circuitry, but not quite. Two collectors with great Zenith web pages, Gary's Radios and RadioJayAllen, have noted that the Royal 400 never really got a fair shake: the very well deserved fanfare over the Zenith 500H simply left the Royal 400 in the shadows, even though it was a well-performing radio. One of the cost-cutting measures used on the Royal 400 was a thermoplastic cabinet (maybe ABS), rather than the nylon cabinet used on the Royal 500H.

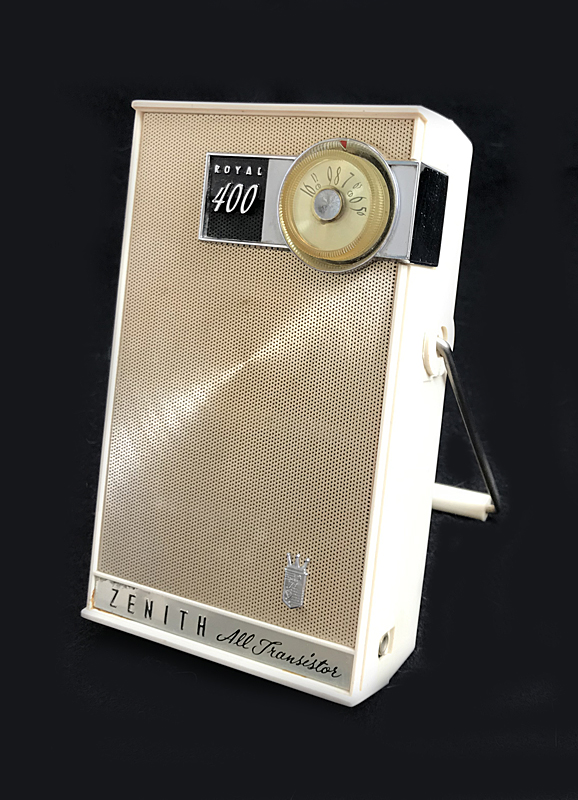

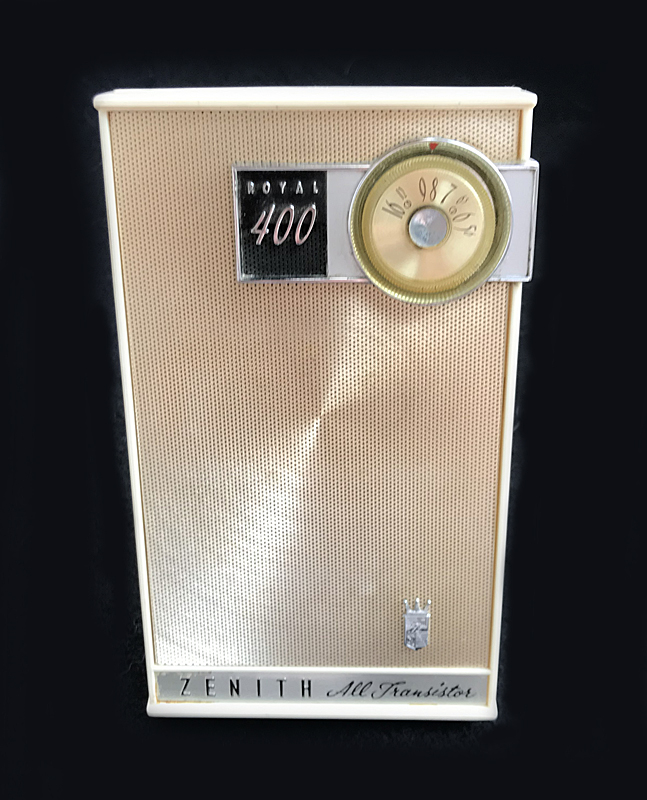

Zenith Royal 400

Zenith Royal 400


Zenith Royal 400

Zenith Royal 400


Zenith Royal 400

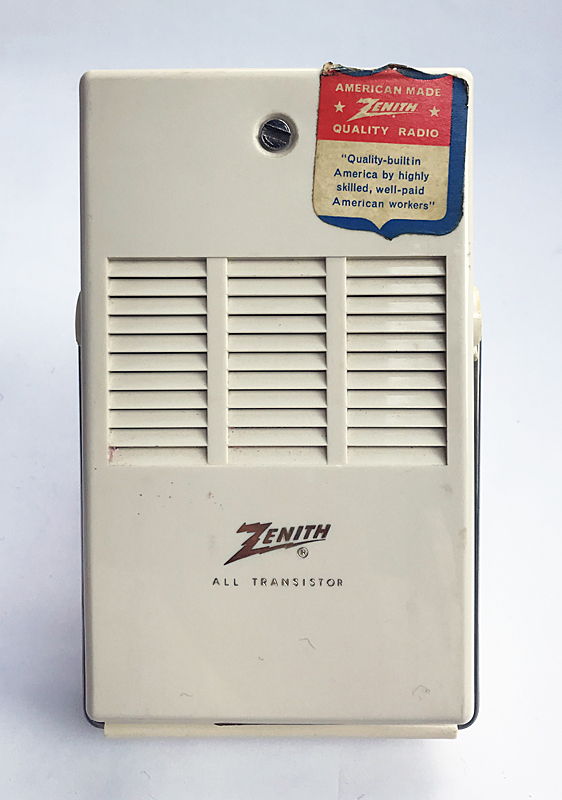

Zenith Royal 400 back face

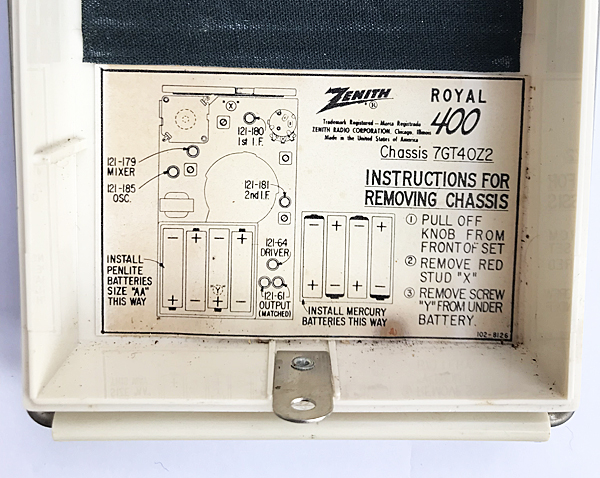

Zenith Royal 400

inside label

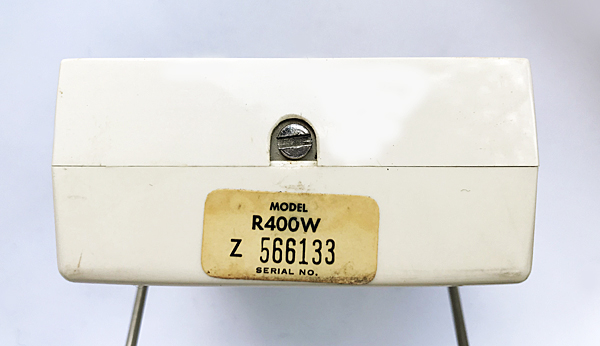

Zenith Royal 400

cabinet bottom

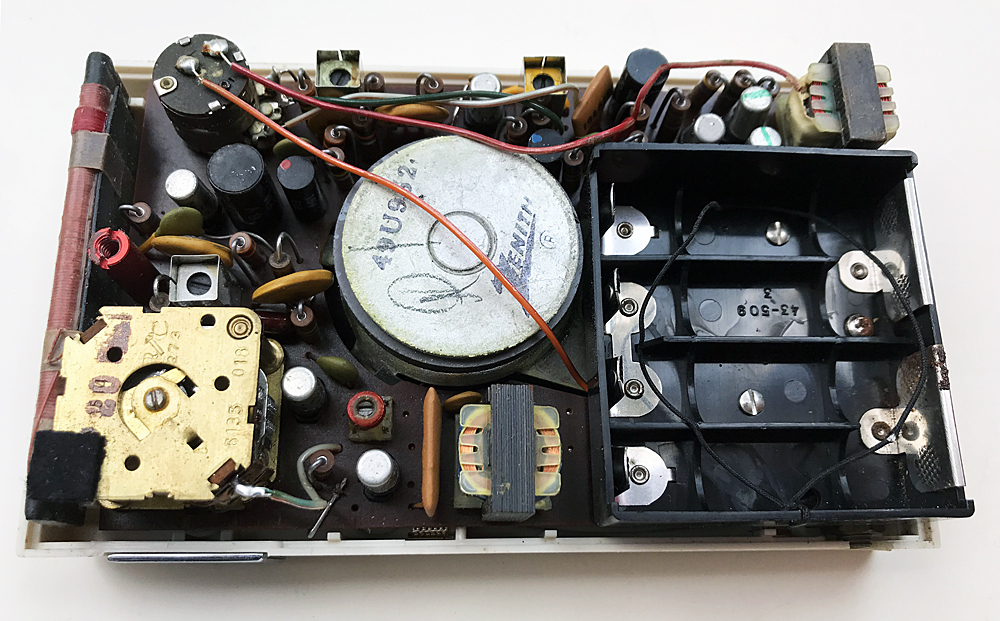

Zenith Royal 400

chassis

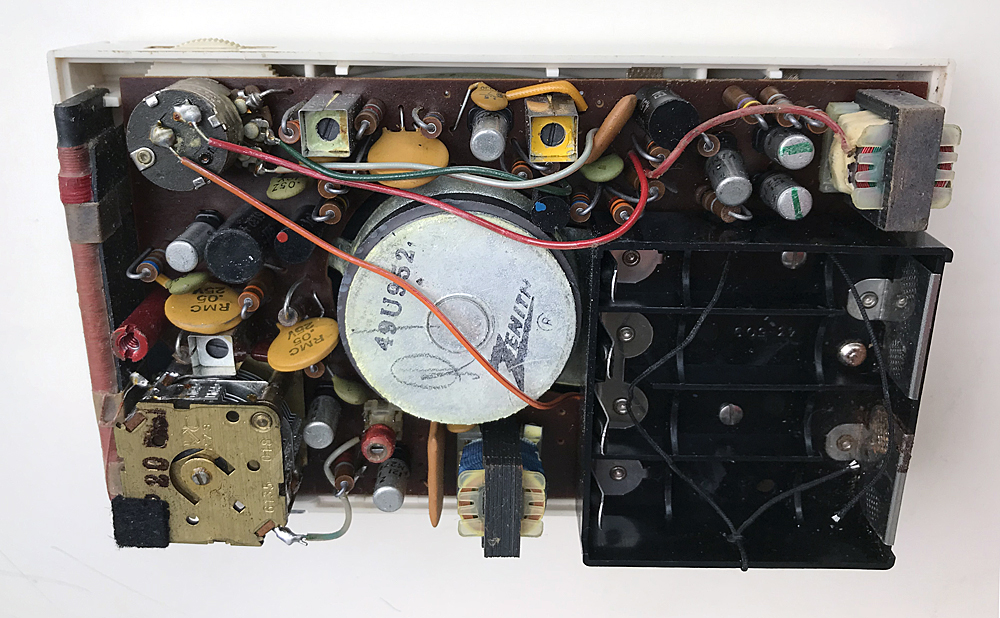

Zenith Royal 400

chassis


Zenith Royal 400

Royal 400 advertisement
