1959/60 Grundig Taschen-Transistor-Boy II/59

2-band LW/MW horizontal coat pocket radio, thermoplastic cabinet
5 7/8 x 3 1/2 x 1 5/8 inches / 149 x 89 x 41 mm
Six transistors, four 1.5v cells
Manufactured by Grundig, West Germany

A two-band LW/MW coat pocket radio, probably first produced in 1959 shortly after the Taschen-Transistor-Boy 59 and then also in 1960. It has a brass carry handle that extends from one side. There is no tuning dial pointer here: instead, a white plastic ribbon with a red area the right end of which indicates the dial setting. This set has nearly the same name as the popular vertical coat pocket Transistor Boy.

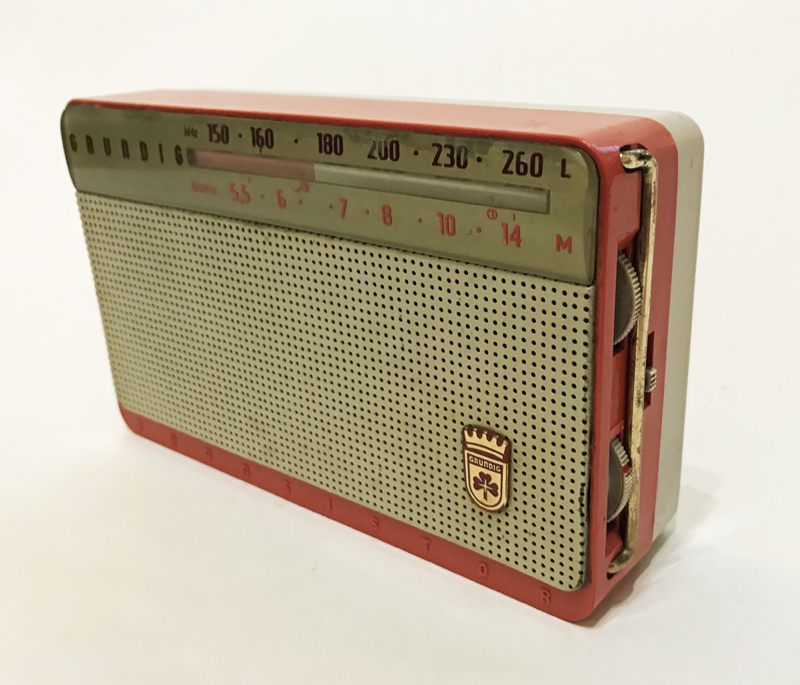

Grundig Transistor Boy II

Grundig Taschen-Transistor-Boy II/59

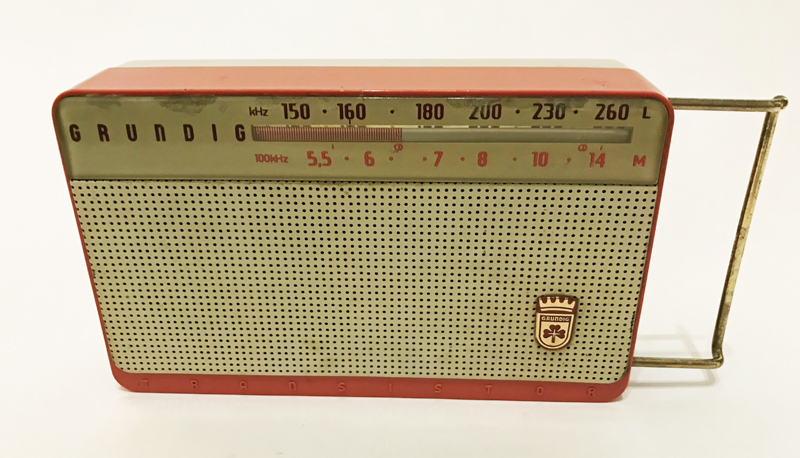

Grundig Transistor Boy II

Grundig Taschen-Transistor-Boy II/59

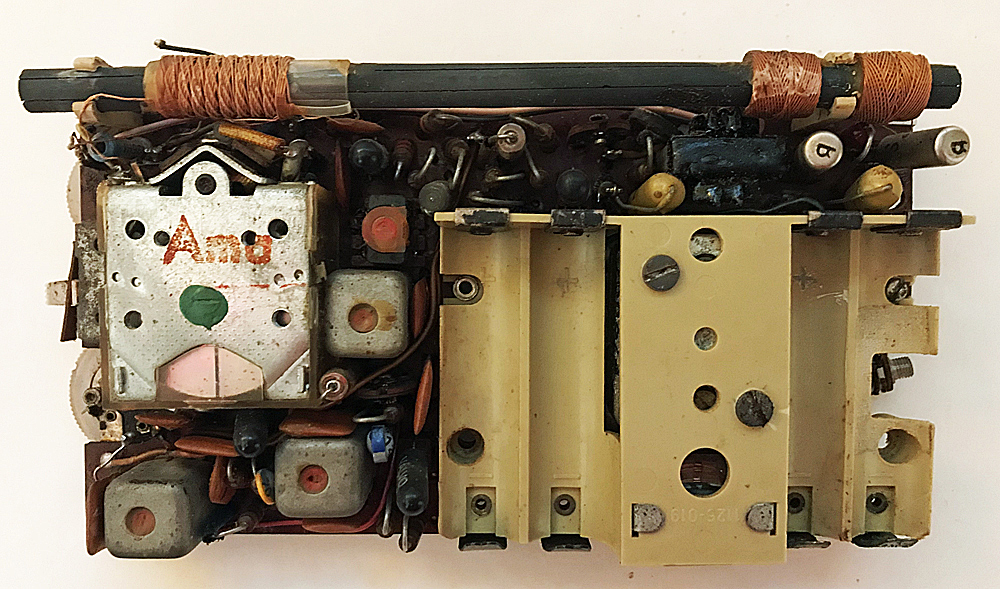

Grundig Transistor Boy II chassis

Grundig Taschen-Transistor-Boy II/59 chassis

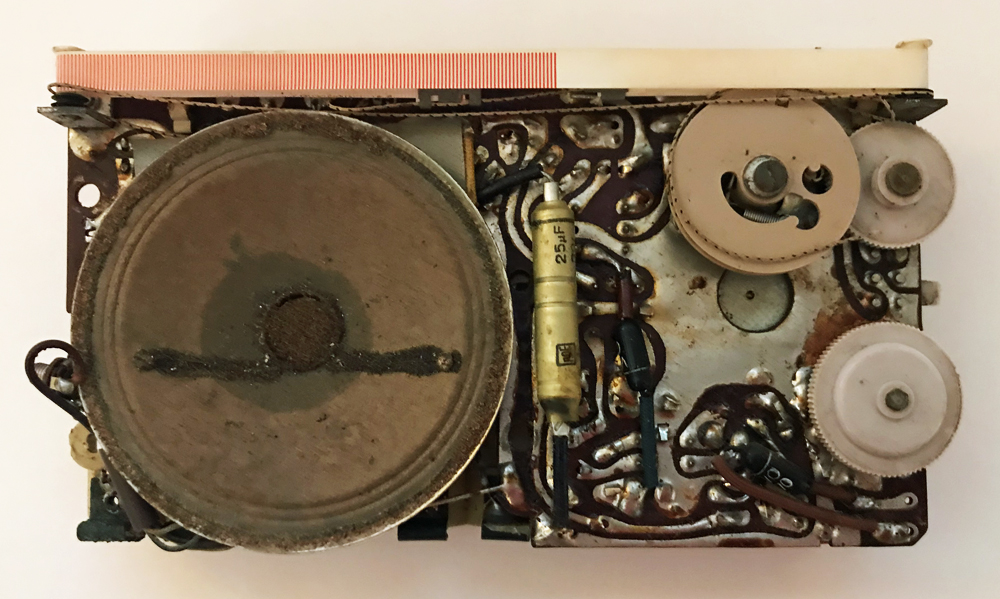

Grundig Transistor Boy II chassis

Grundig Taschen-Transistor-Boy II/59 chassis pc board

Grundig Transistor Boy II chassis

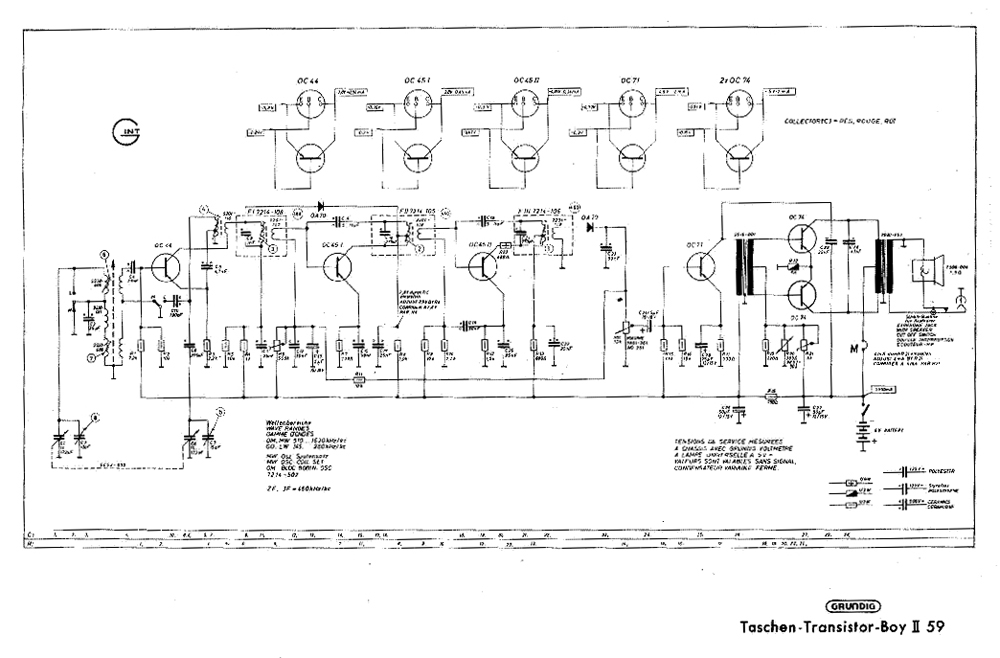

Grundig Taschen-Transistor-Boy II/59 schematic

Grundig Transistor Boy II

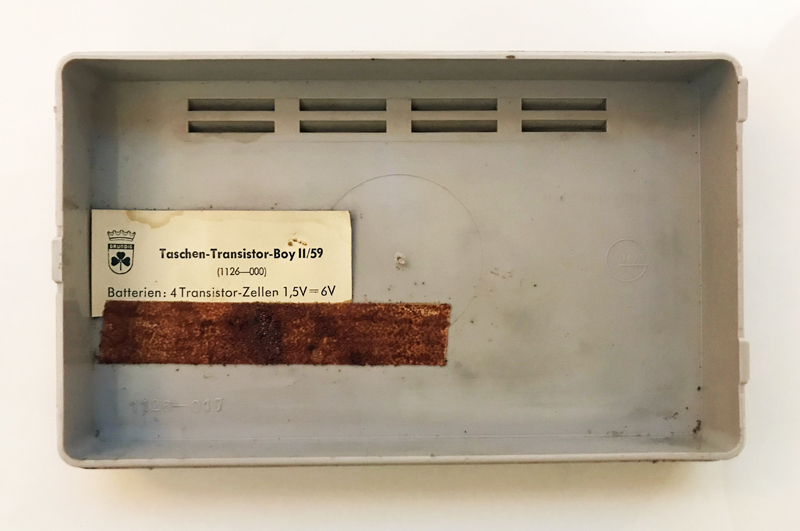

Grundig Transistor Boy II inside back

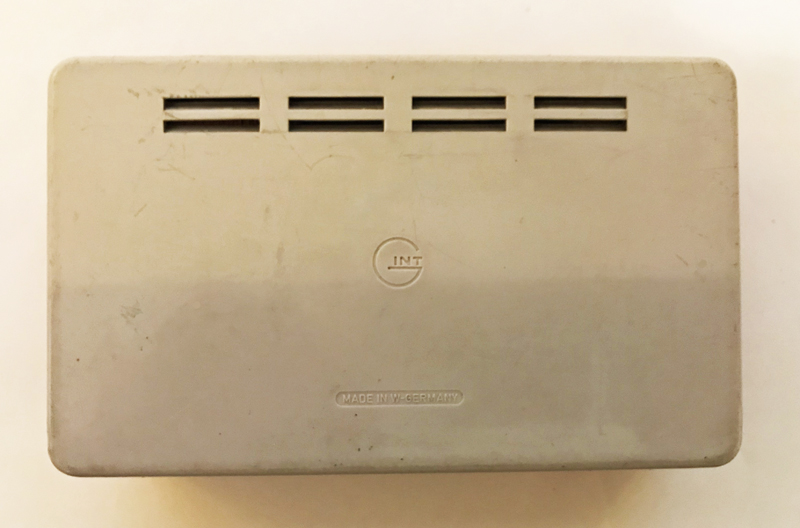

Grundig Transistor Boy II back face

Grundig Transistor Boy II back face
