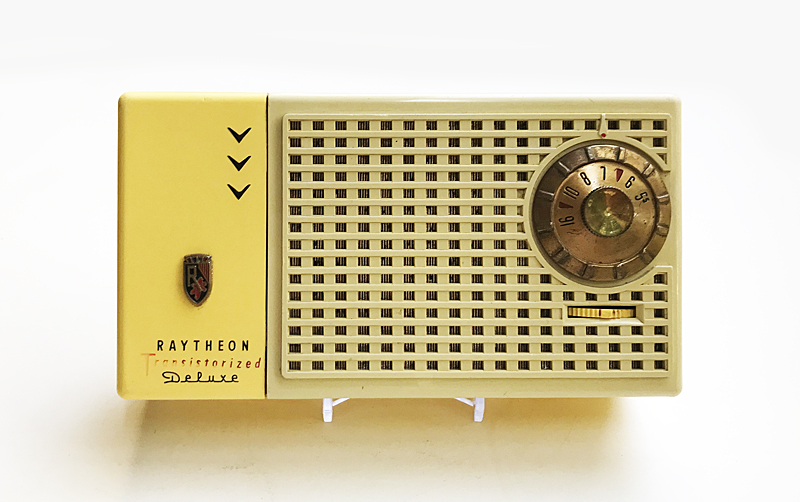

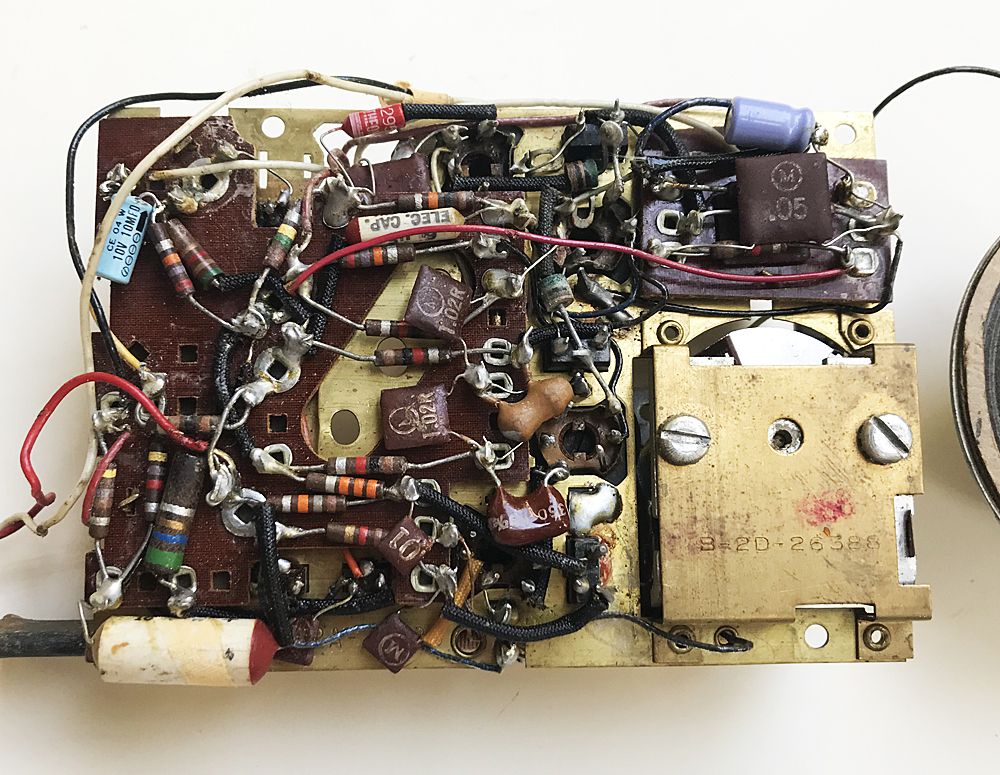

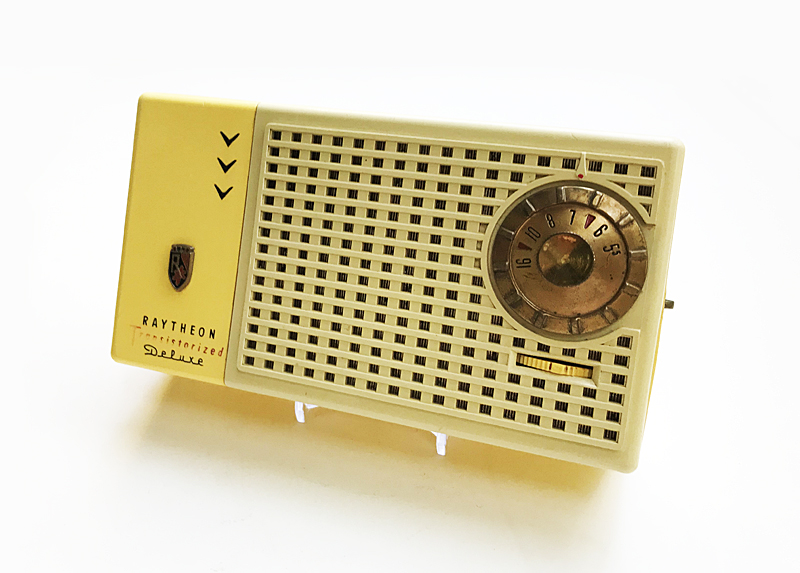

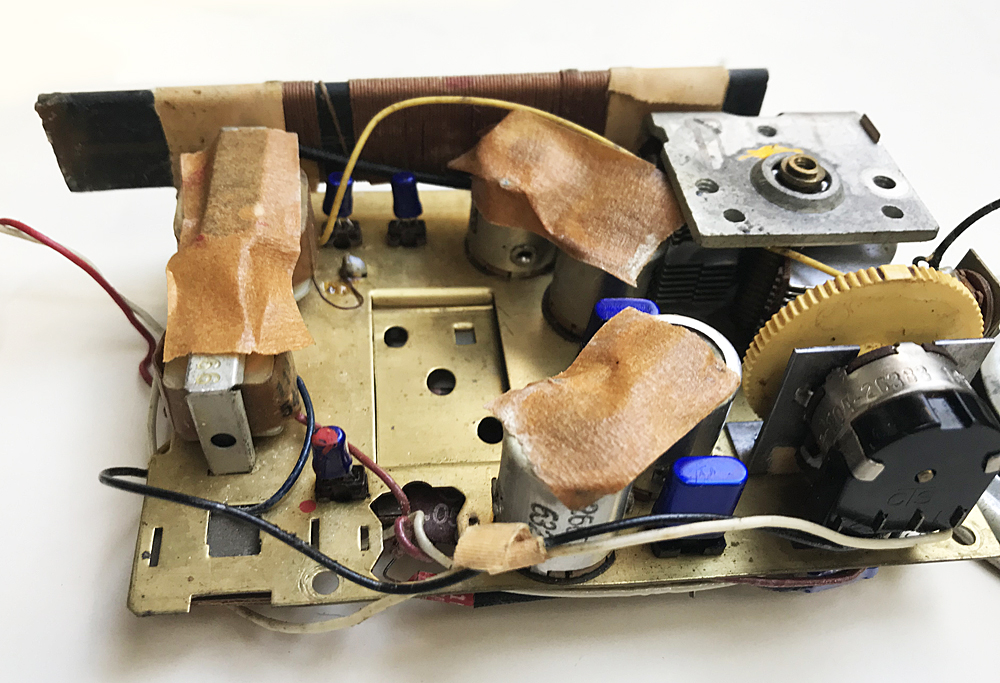

1955/56 Raytheon T-150, chassis 6RT1
Coat pocket radio, thermoplastic cabinet
6 1/4 x 3 7/16 x 1 7/8 inches / 178 x 87 x 47.6 mm
Six transistors (Raytheon blue ovals: 3 x 2N112/CK760; Raytheon blue cans: 2N132, 2 x 2N138; one 1N295 diode)
One standard 9-volt battery
Manufactured by Raytheon Mfg. Co., Waltham, MA
The T-150's predecessor, the Raytheon T-100, was a four-transistor job that needed better audio performance -- so for the T-150, a second 2N138 transistor was added to the audio circuit to improve it. And a third 2N112/CK760 transistor was added to its RF/IF circuits. It's Deluxe!
|
